Tungsten crucible vacuum hydrogen sintering furnace

The equipment is batch type induction furnace,mainly used in tungsten carbide,silicon carbide,boron carbide,polysilicon material,calcium carbide,Rare earth oxide,radiation proof material,gemstone,sapphire,metal,billets,powder metallurgy,rhenium material,vanadium carbide powder and such as metal powder and composite me..

Consult now

Introduction

Vertical type hydrogen sintering furnace

1.Application:
The equipment is batch type induction furnace,mainly used in tungsten carbide,silicon carbide,boron carbide,polysilicon material,calcium carbide,Rare earth oxide,radiation proof material,gemstone,sapphire,metal,billets,powder metallurgy,rhenium material,vanadium carbide powder and such as metal powder and composite metal powder.
2.Configuration:
380V±10%，50Hz/60Hz 3 phase 5 wire
One control cabinet to one furnace and optional for one to two type or one to four type.

3.Technology parameter:

Item / model		NTI-SJL-4L	NTI-SJL-9L	NTI-SJL-57L
Working size （L×W×H）	mm	150×250	200×300	350×600
Heating type	/	Induction heating

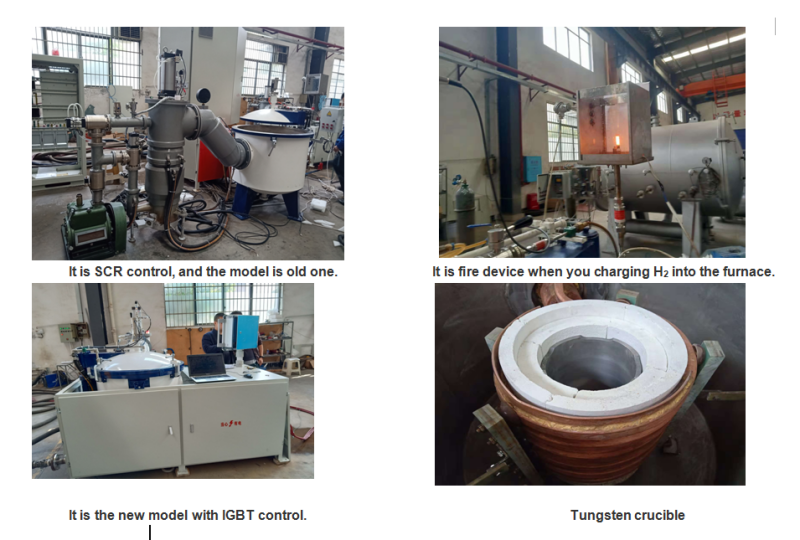

Power control	/	IGBT or SCR control
Crucible	/	Tungsten
Max. capacity	L	4	9	57
Loading capacity	g	HT area capacity × product’s density(g/cm3)×1000 1L=1000cm3
Input voltage	/	380V±10%，50Hz/60Hz 3 phase 5 wire
Equipment structure	/	One power to one or two or four furnace
Type	/	Vertical
power	Kw	50/90	60/120	90/150
Frequency	Hz	2500	2500	1500
Max. temperature	℃	2300	2300	2300
Vacuum	Pa	6.6x10^-3	6.6x10^-3	6.6x10^-3
Working tem.	℃	2200	2200	2200
Tem. uniformity	℃	±10	±10	±10
working environment	/	Vacuum or H_2, Ar、H₂,N₂atmosphere environment (micro-positive pressure)

You can customize it as per your real requirement.

We have lots of famous clients from the world like Kolon in Korea,USI in Taiwan,
Jiangxi Zicheng in China,and Joinset in Korea and so on,as the below pictures showing.

Honor of qualification

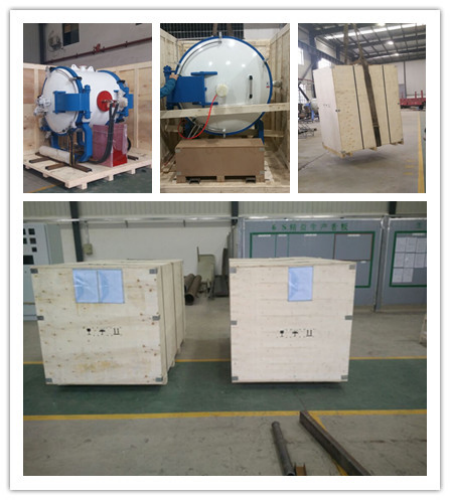

Packing mode

1.Special size and requirement furnace can be customized.
2.The using method and operation and related knowledge taught by our engineer before shipment.
3.Engineers available to service machinery overseas after-sales service provided.
4.Payment Terms:T/T.
5.Price terms:FOB Shanghai Port,China
6.Transport way:by sea,we have good forwarders,super service and price!
7.Delvery time:Estimated time of delivery is 60 days after confirming to receive the deposit payment.
8.1 year of warranty.
9.Other services:we can produce furnace according to your drawing design or requirements.
