Intermediate frequency carbonization furnace

Application for Thermally conductive film carbonization, glass-fiber carbonization, organic matter carbonization, powder carbonization and such as field, Can be combined with the use of the graphite furnace, used in new materials, carbon and carbon materials, special ceramics industry.

Consult now

Introduction

Application:
Application for Thermally conductive film carbonization, glass-fiber carbonization, organic matter carbonization, powder carbonization and such as field, Can be combined with the use of the graphite furnace, used in new materials, carbon and carbon materials, special ceramics industry.

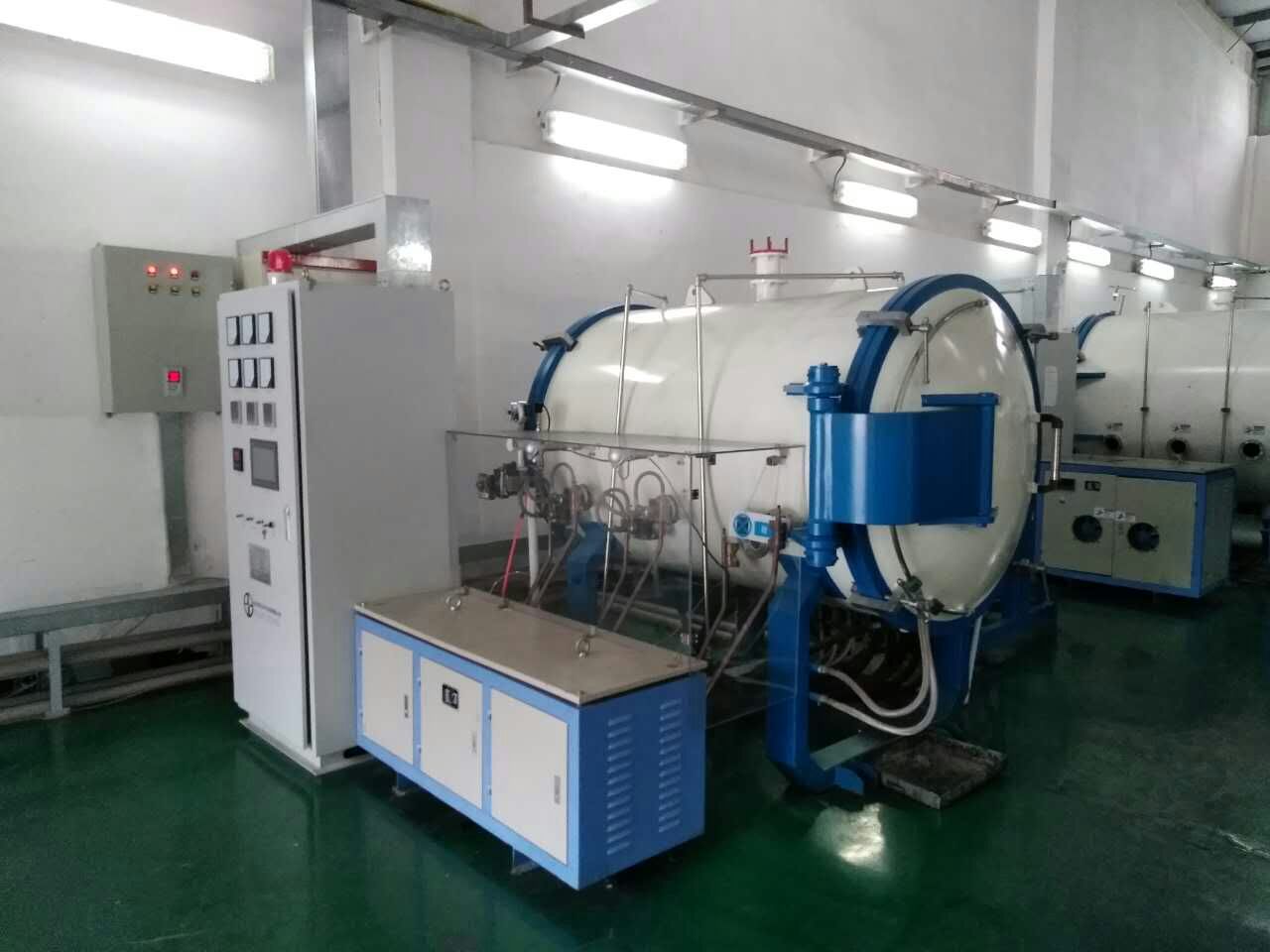

The picture of carbonization furnace:

QQ圖片20170517100122

Model Parameter		Lab usage	Production usage
Model Parameter		NTI-THL-54W	NTI-THL-243W	NTI-THL-300W	NTI-THL-400W	NTI-THL-720W	NTI-THL-720+NW
Working size	mm	300×300×600	450×450×1200	500×500×1200	500×500×1600	600×600×2000	（600-800）×（600-800）×（2000-4000）
Control process		Thyristor control
Heating type	/	Resistance heating
HT zone capacity	L	54	243	300	400	720	720+N
Loading weight	g	HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3
Ultimate vacuum	Pa	20
IF power	Kw	50	105	120	135	189	189-500
Heating zone	Zone	1	3	3	3	3	3-6
Max. working temperature	℃	1600	1600	1600	1600	1600	1600
Usual working temperature	℃	1500	1500	1500	1500	1500	1500
Temperature unifomity	℃	±5	±5	±5	±5	±5	±10
Working environment	/	Vacuum or Ar, N2 atmosphere protection( micro positive pressure)
