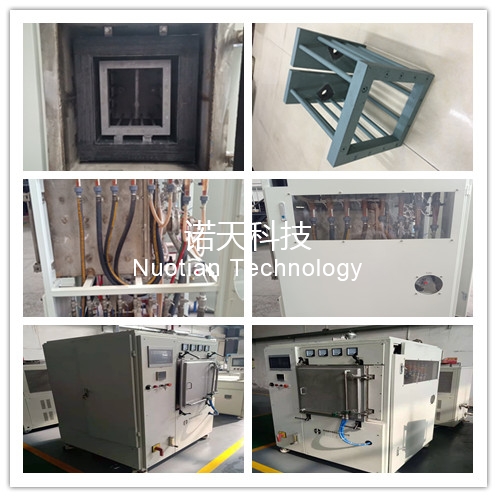

2200c resistance heating vacuum sintering lab furnace

Consult now

Introduction

1.Application:

The equipment is batch type induction furnace, mainly used in graphite powder, graphene, lithium battery material, boric anhydride, tungsten carbide, silicon carbide, boron carbide, magnesium fluoride, poly-silicon material, calcium carbide, Rare earth oxide, radiation proof material, sapphire, metal, billets, powder metallurgy, vanadium carbide powder and such as metal powder and composite metal powder, carbon material, carbon nano, carbon carbon composite material, carbon fiber, negative electrode materials, rhenium material, graphite powder, Rare earth, contacting terminal material and such related material.

2.Configuration:

380V±10%，50Hz/60Hz 3 phase 5 wire

One control cabinet to one furnace and optional for one to two type or one to four type.

The facility equipped of cooling chiller, gas purifier for optional.

Model no	NT-DZL-8W
Ultimate working temperature	2300℃
Usual working temperature	2200℃
Input power	380V±5%，50Hz/60Hz, 3 phase
Control type	SCR control
Heating element	Graphite resistance
Rated power	27KW
Working size	200x200x200 mm
Workable capacity	8L
Temperature measure	American Raytek infrared tem.measure（450℃-2250℃）±0.75% full range.
Temperature control	Japanese Shimaden FP93
Exhaust type	Auto. exhaust
Gas inert	Argon, Nitrogen
Temperature uniformity	≤±5℃。Remark:：after keeping temperature for 30min.
Inside working atmosphere	Vacuum or Argon（micro positive pressure）
Protection type	PLC aptitude early warming, warming and power safety protection.
Cooling type	Closed inner circulating water cooling system: chiller NT-08D
Gas purifier	Model CA4000D
IPC	MCGS touch screen DOP-110WS and Simens PLC SMART-200
Vacuum system	Rotary-vane vacuum pump 2X-4 and roots pump ZZ-30, vacuum valve, pipe and vacuum instrument.
Vacuum degree	10Pa
Furnace outer size	L1500×W1000×H2000mm
Chiller outer size	L1500xW720xH1500mm
Equipment weight	2T
