Horizontal vacuum carbonization furnace
●Application:

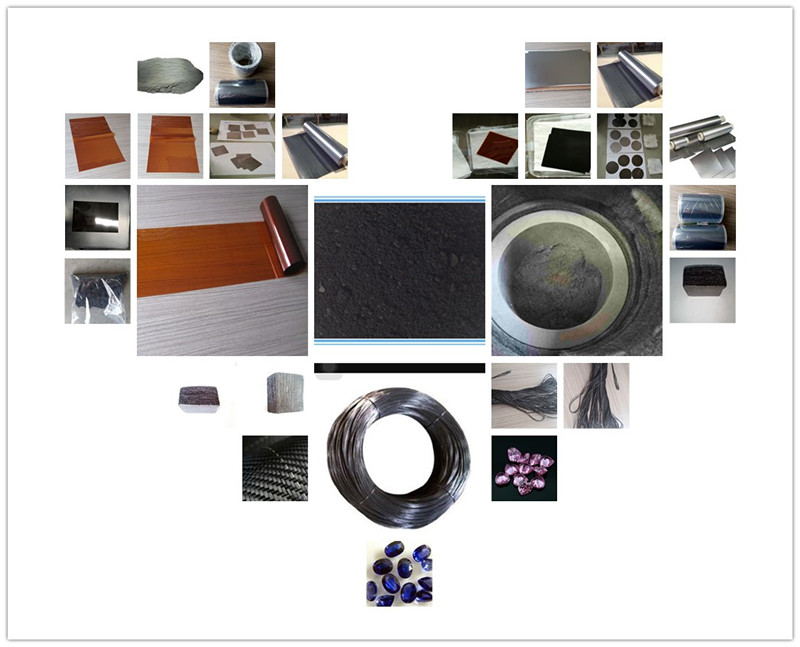

Application for Thermally conductive film carbonization, glass-fiber carbonization, AIN powder, AIN film, Ain ceramic, organic matter carbonization, powder carbonization and such as field, Can be combined with the use of the graphite furnace, used in new materials, carbon and carbon materials, special ceramics industry.
|
Model Parameter |
Lab usage |
Production usage |
|||||
|
NTI-DZL-54W |
NTI-DZL-243W |
NTI-DZL-300W |
NTI-DZL-400W |
NTI-DZL-720W |
NTI-DZL-720+NW |
||
|
Working size |
mm |
300×300×600 |
450×450×1200 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
（600-800）×（600-800）×（2000-4000） |
|
Control process |
|
Thyristor control |
|||||
|
Heating type |
/ |
Resistance heating |
|||||
|
HT zone capacity |
L |
54 |
243 |
300 |
400 |
720 |
720+N |
|
Loading weight |
g |
HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3 |
|||||
|
Ultimate vacuum |
Pa |
20 |
|||||
|
IF power |
Kw |
50 |
105 |
120 |
135 |
189 |
189-500 |
|
Heating zone |
Zone |
1 |
3 |
3 |
3 |
3 |
3-6 |
|
Max. working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Usual working temperature |
℃ |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
|
Temperature unifomity |
℃ |
±5 |
±5 |
±5 |
±5 |
±5 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, N2 atmosphere protection( micro positive pressure) |
|
||||
